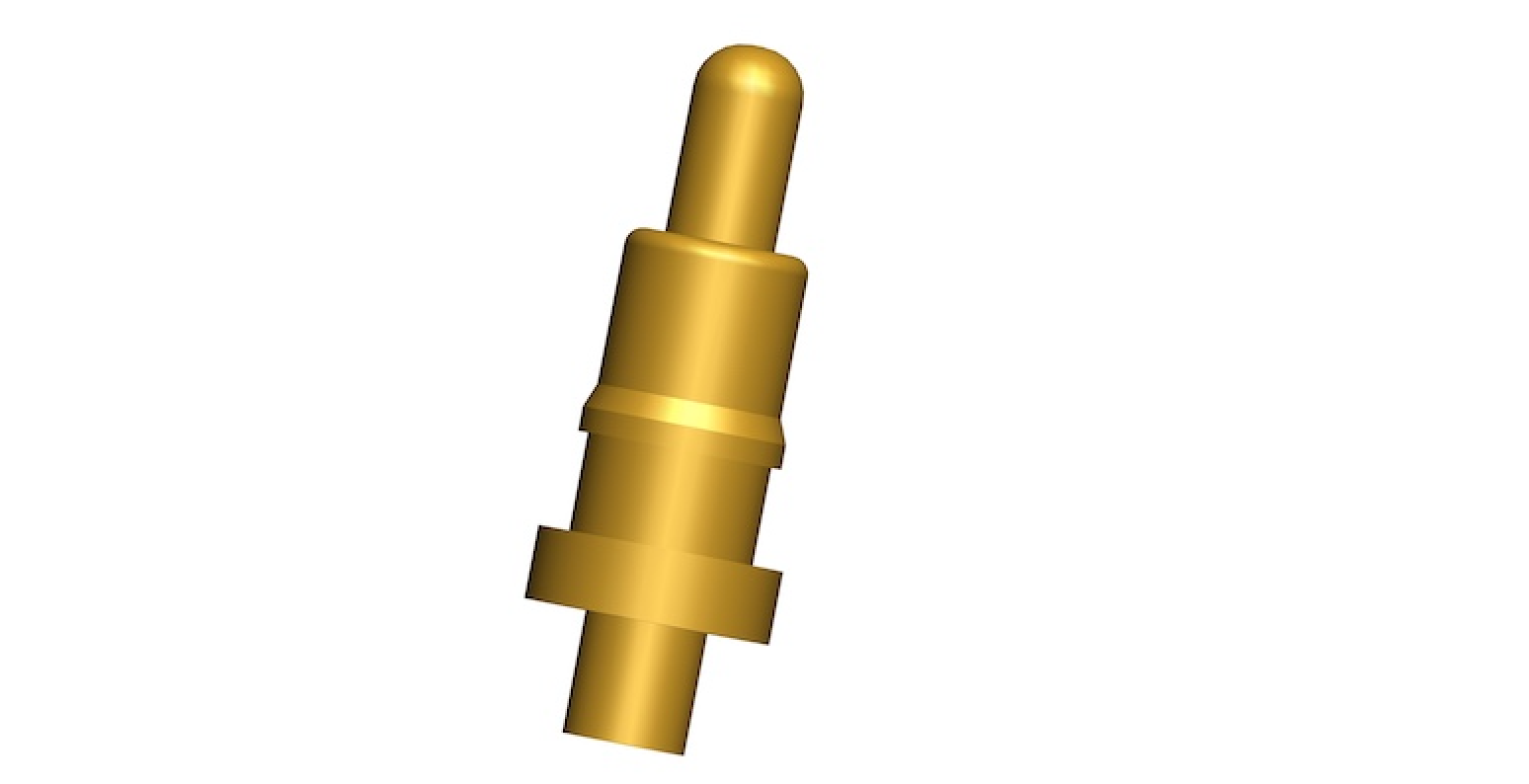

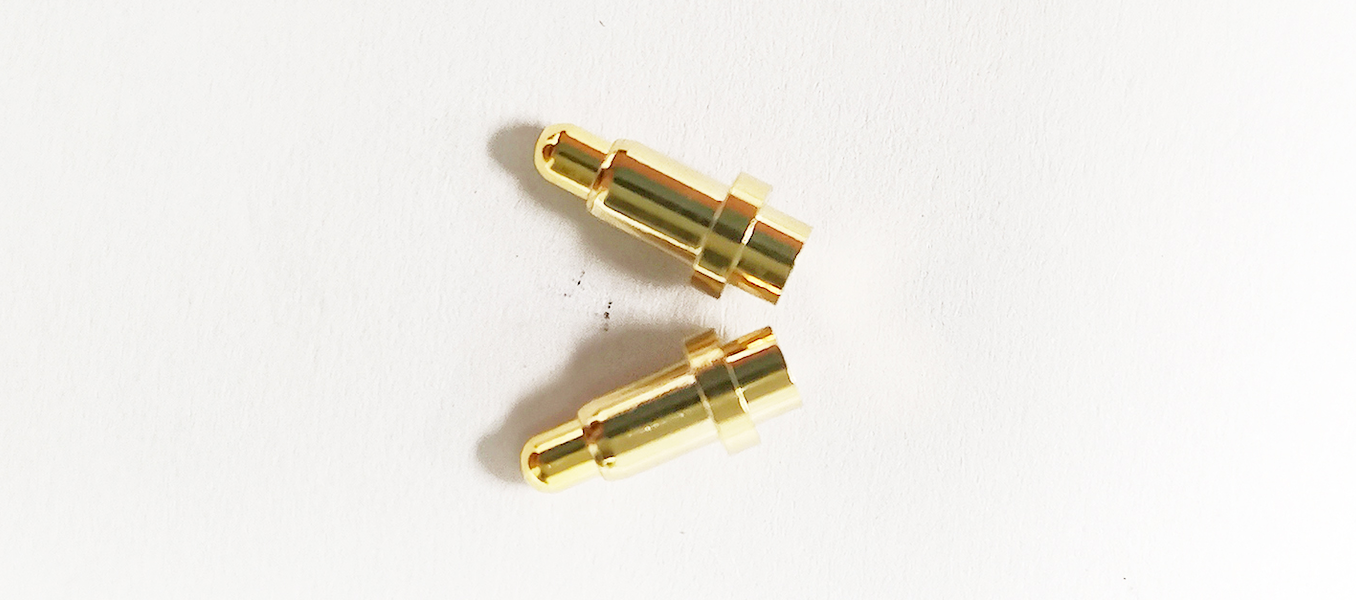

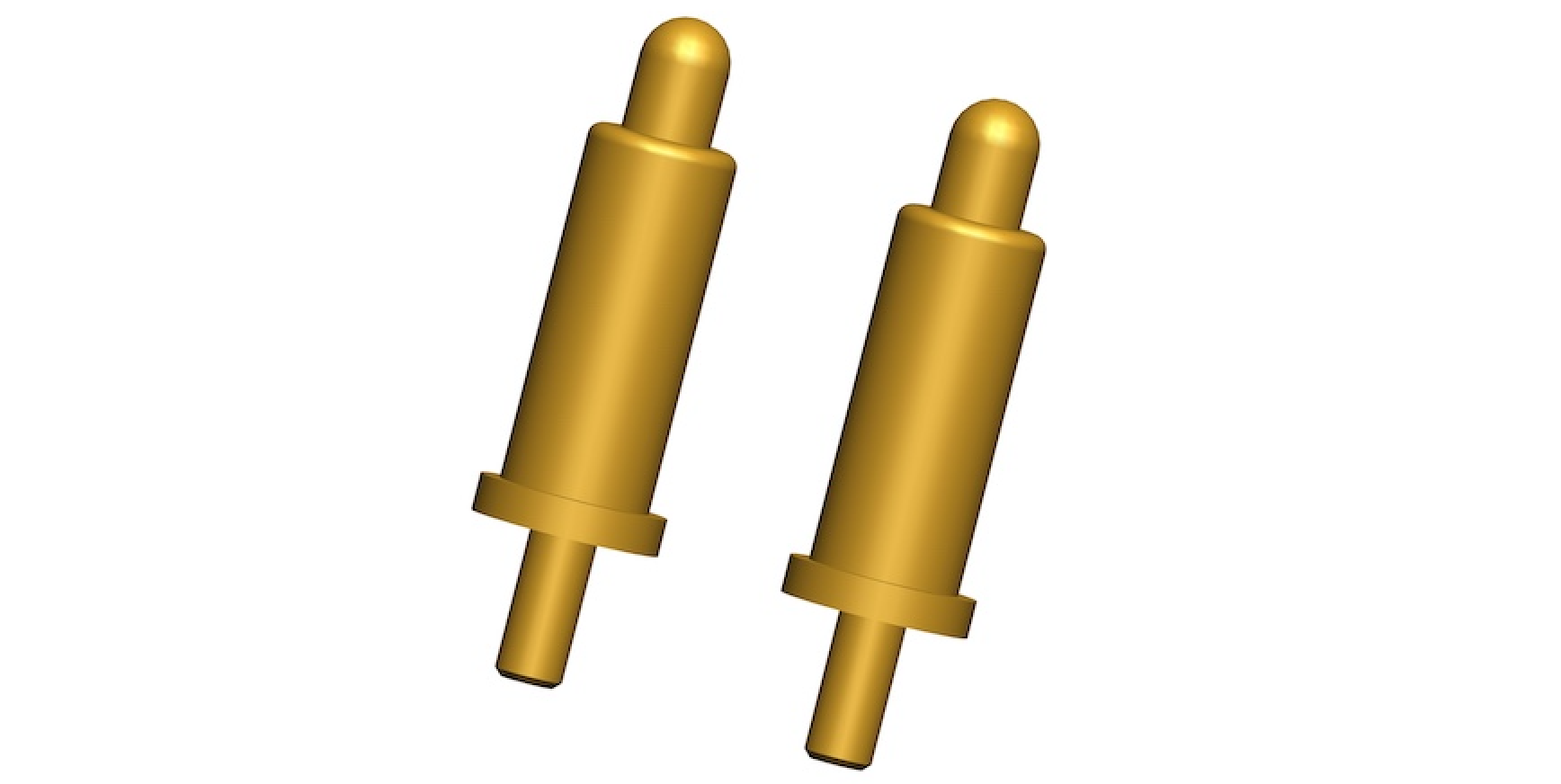

DX3594 Board-Mount Pogopin Spring Pin
Max Outer Diameter: 1.8mm
Total Length: 6.2mm
Rated: 12V / 3.0A
Spring Force: 70g (±20%) |
Contact Resistance: 30mΩ
Service Life: 300,000 cycles
DX3594-detailed dimensional drawing
Insert plate size template
Plug-in 3
Thimble with tail plate

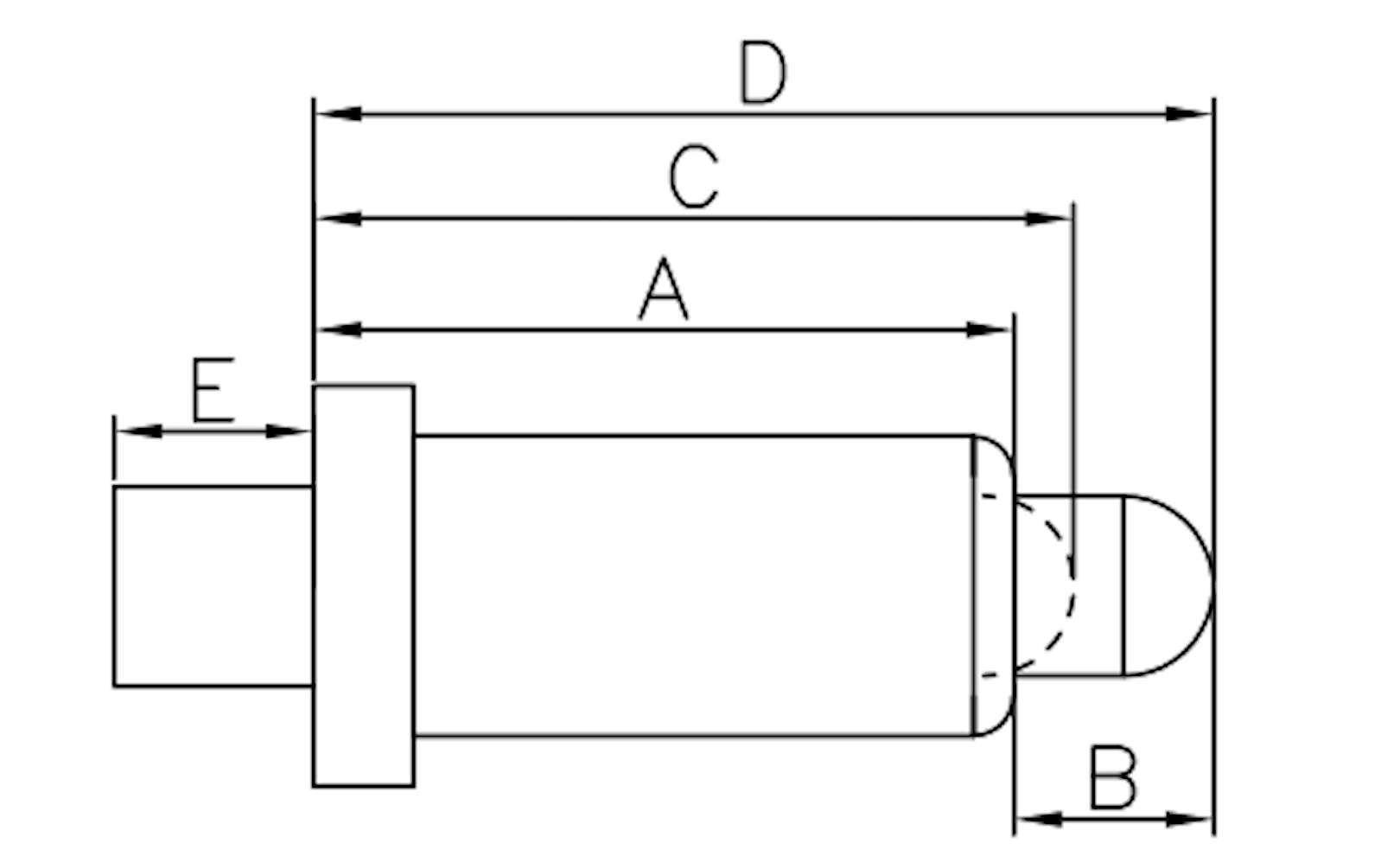

Single needle with tail
- Base material: HBi59 brass, 30U thick gold plating, anti-oxidation & corrosion resistant
- 300,000 long plug-unplug cycles, stable contact without looseness
- Low resistance design, low heat generation for high-current transmission
- Balanced spring force, no damage to PCB during crimping, easy soldering & assembly
Mainly for portable medical electronics: oximeters, ECG monitors, physical therapy devices, medical wearable equipment, etc. Customization available for size, spring force and plating thickness; also compatible with digital products and energy storage contact solutions.
