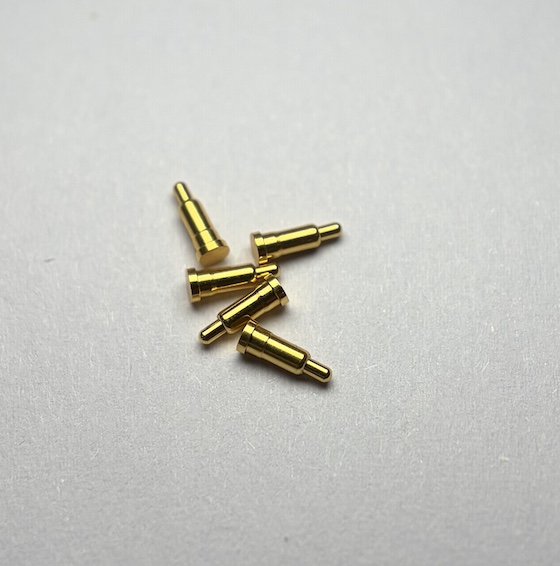

DX2225 SMT Patch Type Pogopin Spring Pin
Max Outer Diameter: 2.1mm, Overall Length: 5.5mm Rating: 12V/2.0A, Spring Force: 150g±20% Contact Resistance: 100mΩ, Cycle Life: 10,000 times Material: 3604 brass, 10U gold plating
Patch Template

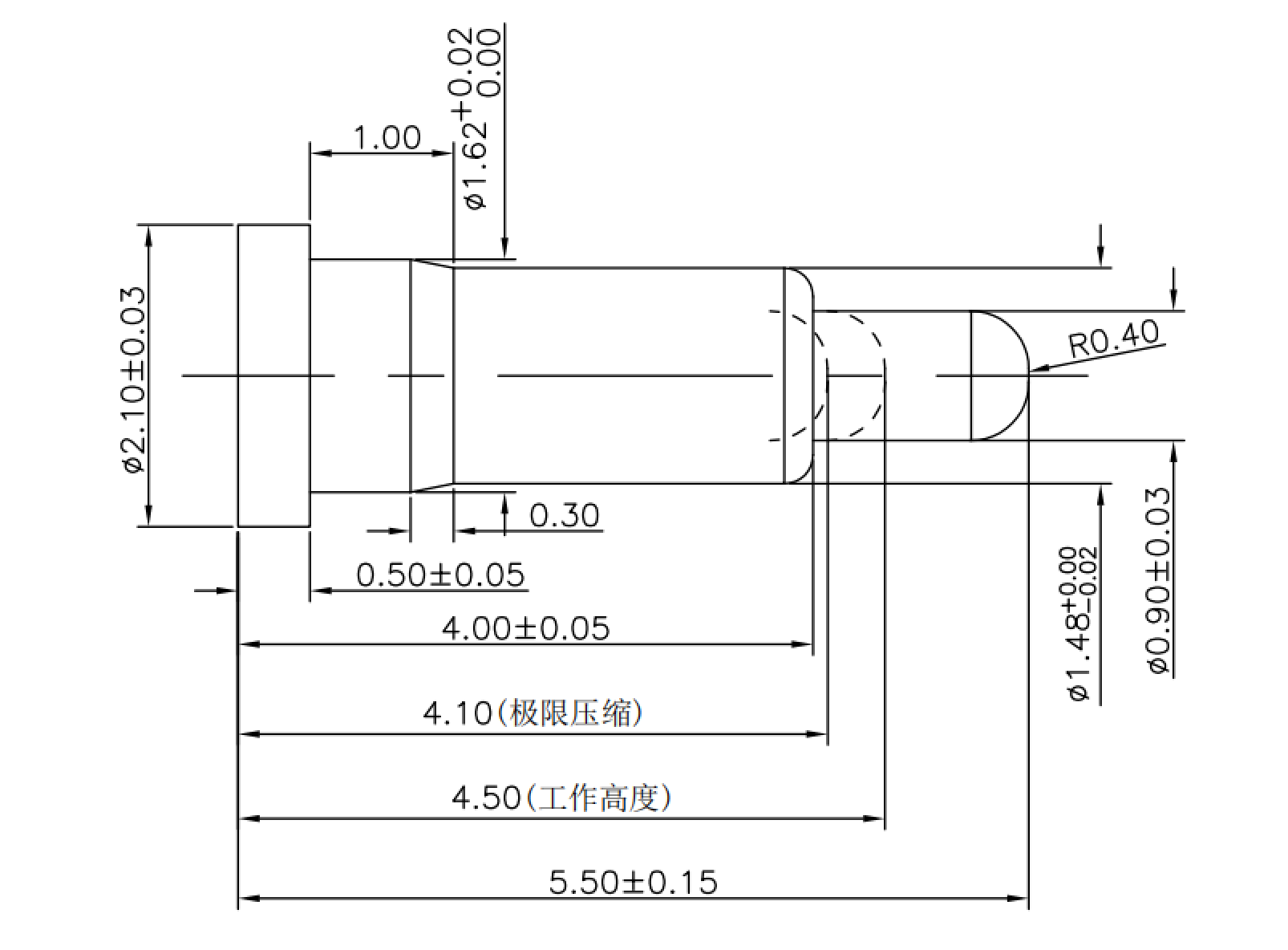

DX2225 Single Pin Size

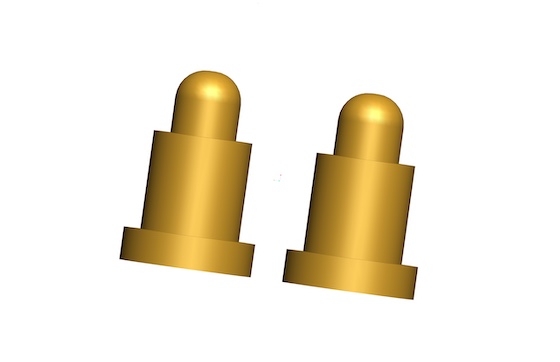

Flat Bottom 1

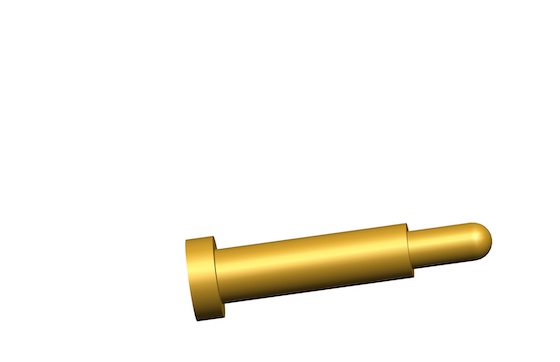

Flat Bottom 2

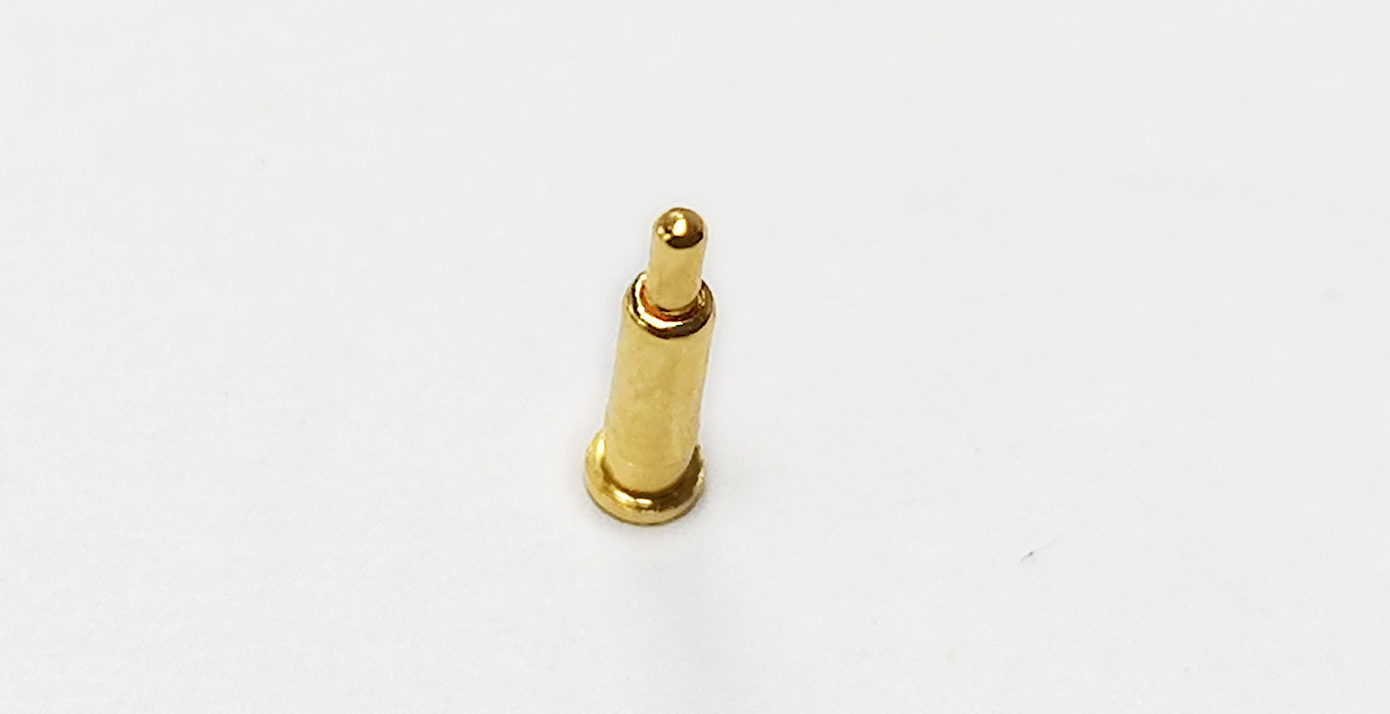

Flat Bottom 3

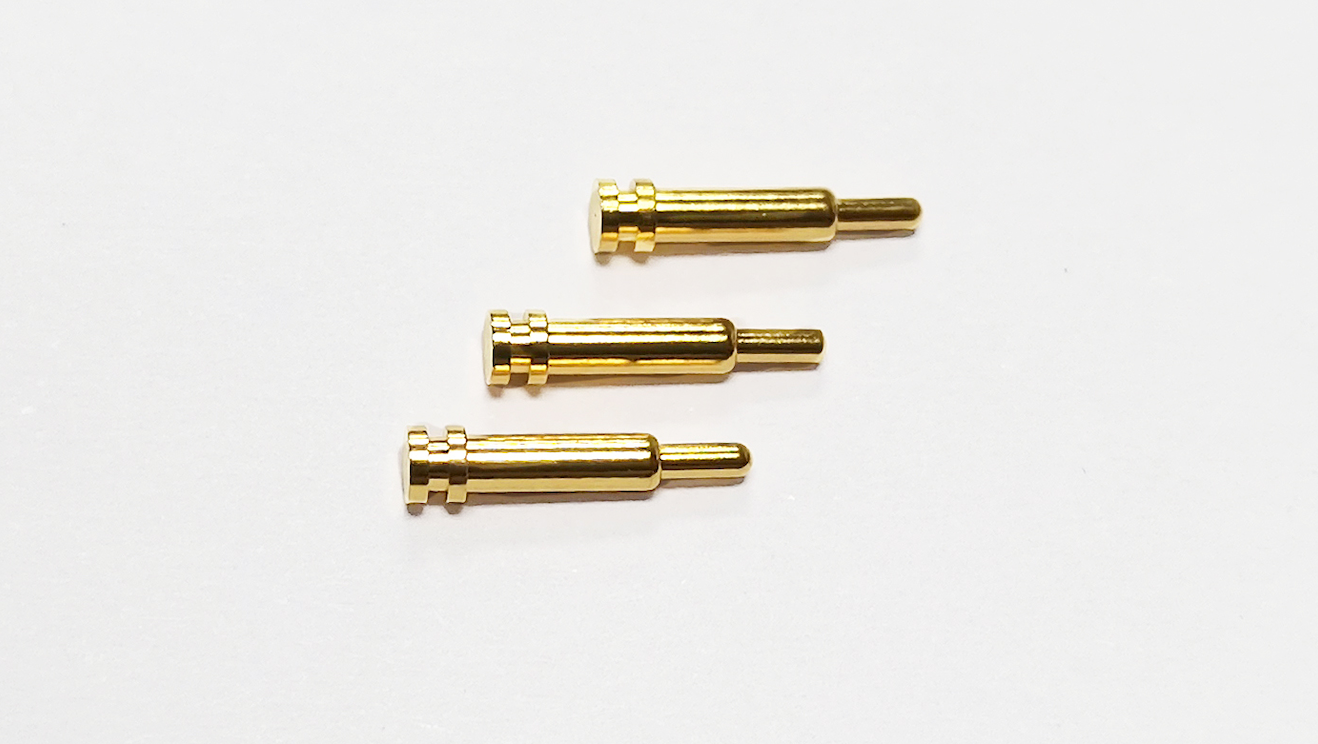

Flat-bottomed patch needle
- SMT patch design with tape & reel packaging, compatible with automatic mounter; daily output over 500,000pcs for mass production
- 10U gold plating achieves over 72-hour salt spray resistance, excellent anti-oxidation and moisture-proof performance
- Rigid 3604 brass body delivers stable spring force, no deformation after long-term pressing
- Stable 2.0A current load, reliable for power charging and signal transmission
- Compact patch layout saves internal space of electronic devices
Mainly for TWS Bluetooth headset charging contacts; also suitable for smart wearables, mini charging cases, tiny intelligent modules with SMT assembly. Custom parameter adjustment is available.
