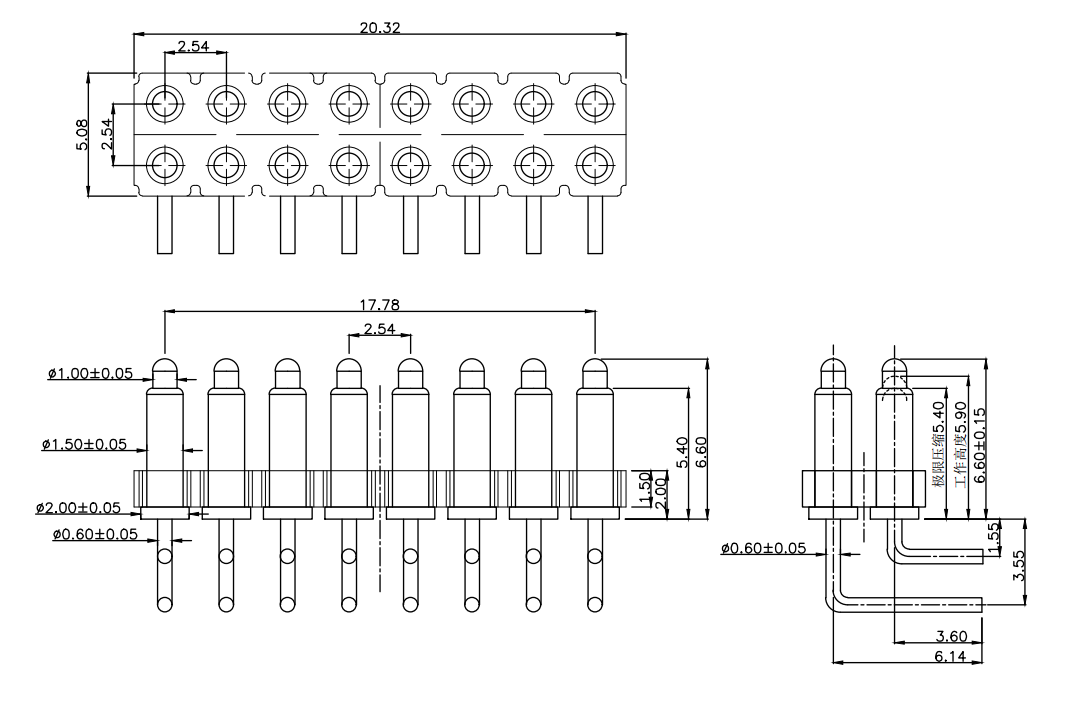

DXJHT-16P Bent High-Frequency Connector
Pin OD：2mm
Total Length：10.15mm
Rating：12V/3.0A
Spring Force：20g±5g
Contact Resistance：20mΩ
Cycle Life：50,000 cycles
80U heavy gold plating
Optional Material: Beryllium copper / Phosphor bronze / Stainless steel
- Custom bent shape fits offset and narrow sandwich space, flexible assembly layout
- Ultra-low 20mΩ resistance supports 3A high current and stable 10G high-speed signal transmission
- 80U thick gold plating minimizes signal attenuation and impedance fluctuation for high-frequency operation
- Multiple material options for different demands: elastic beryllium copper, cost-effective phosphor bronze, rust-proof stainless steel
- Gentle 20g contact force protects delicate pads, stable performance after 50,000 mating cycles
New energy equipment, high-speed communication modules, high-frequency test instruments, industrial control mainboards, high-speed signal transmission devices. Custom bend angle, pin count, material and plating available.
