Why are more and more high-end products opting for magnetic connector technology?

Magnetic snap connectors are typically composed of materials such as Pogopin plastic and magnets. These electronic connectors use magnetic attraction to enable rapid connection and disconnection, and are widely used in charging, data transmission, and signal transmission applications.

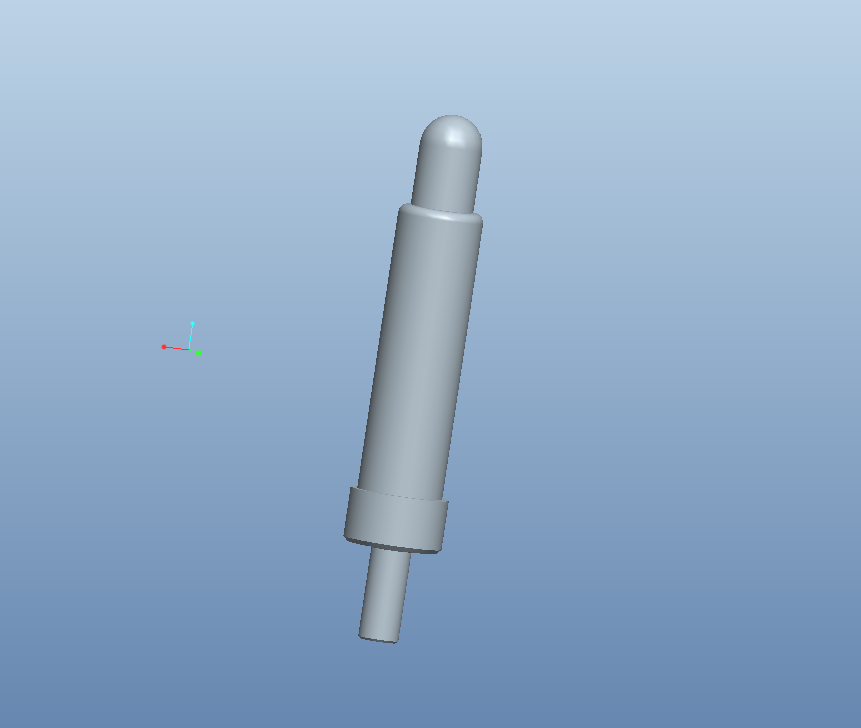

The Pogopin magnetic snap connector utilizes a magnetic suction mechanism for automatic attachment. It features protection against short circuits and high-precision current transmission capabilities. The contact components can be plated with gold up to the 3U-30U grade, and corrosion resistance testing can reach up to 12-200 hours. The magnetic force guides the plug to align with the base, while the spring pins ensure contact continuity. To disconnect, simply pull the plug away; no need for insertion or removal actions.

There are two types based on the differences in salt spray and surface treatment, as well as structural requirements.
Type 1: Standard magnetic snap connectors.
The gold-plated electroplating coating for 3-5U has a salt spray standard of around 24-48 hours, a resistance to electrical performance within 50 milliohms, a standard structure, and can transmit currents of 1-2A using conventional signal transmission.
Type 2: High-quality magnetic connectors.
The gold-plated electroplating layer for 10-30U (additional composite layers such as palladium/platinum/lanthanum can be added according to product standard requirements). The salt spray standard can reach 96-200 hours. The custom-designed structure with zirconia ceramic beads has an electrical contact resistance of around 10-20 milliohms, a high-current low-resistance structure of 5-20A, and high-frequency signal transmission of 5-10G.

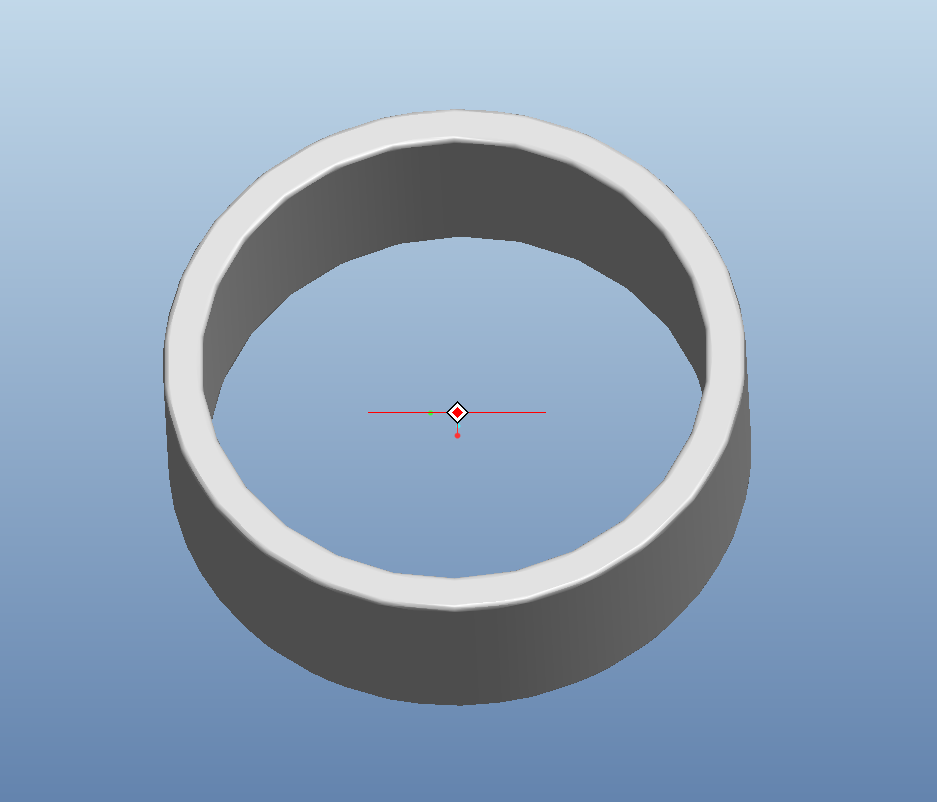

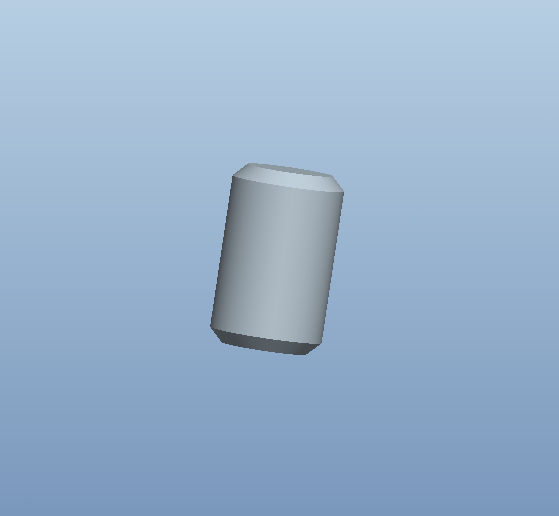

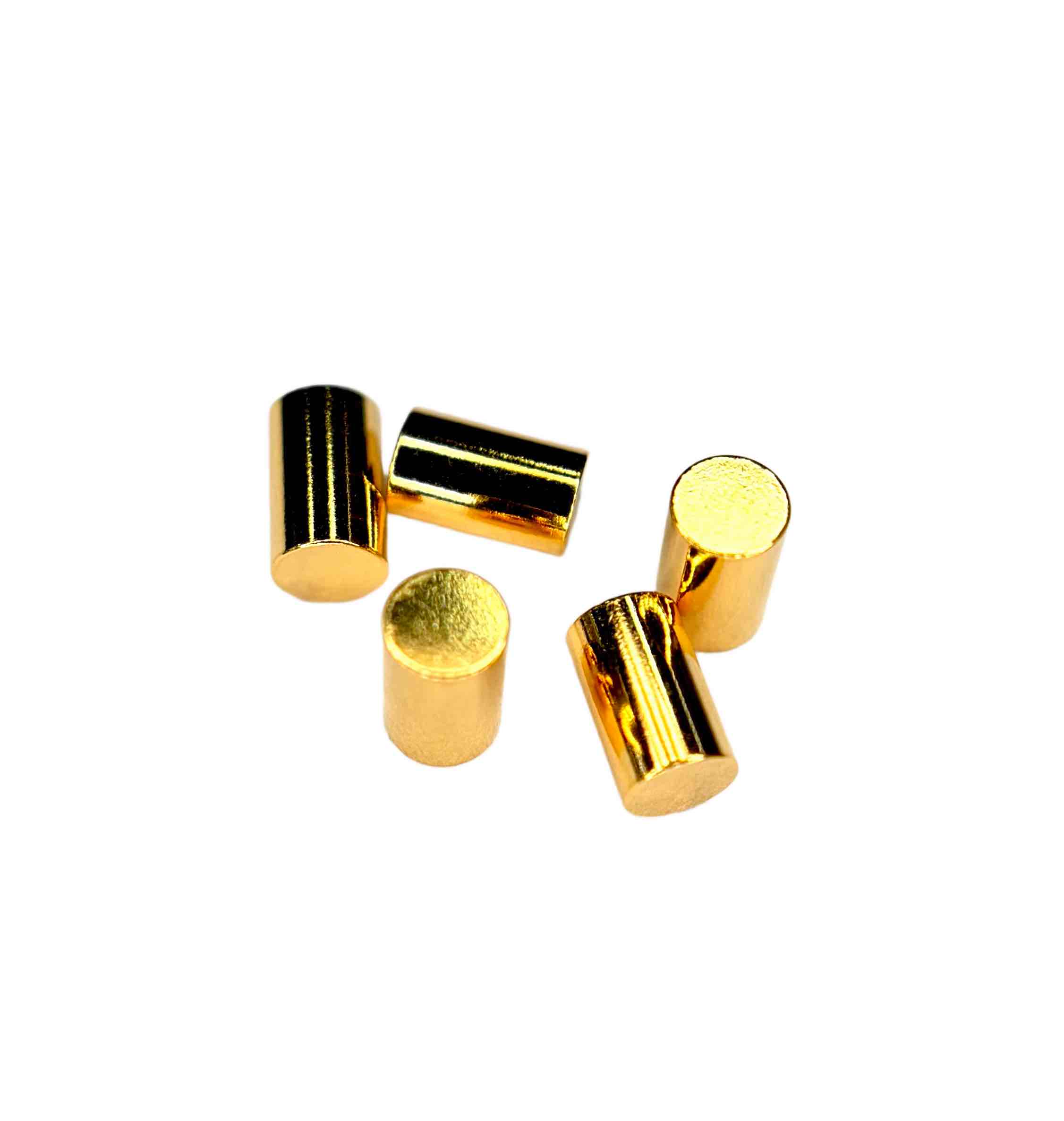

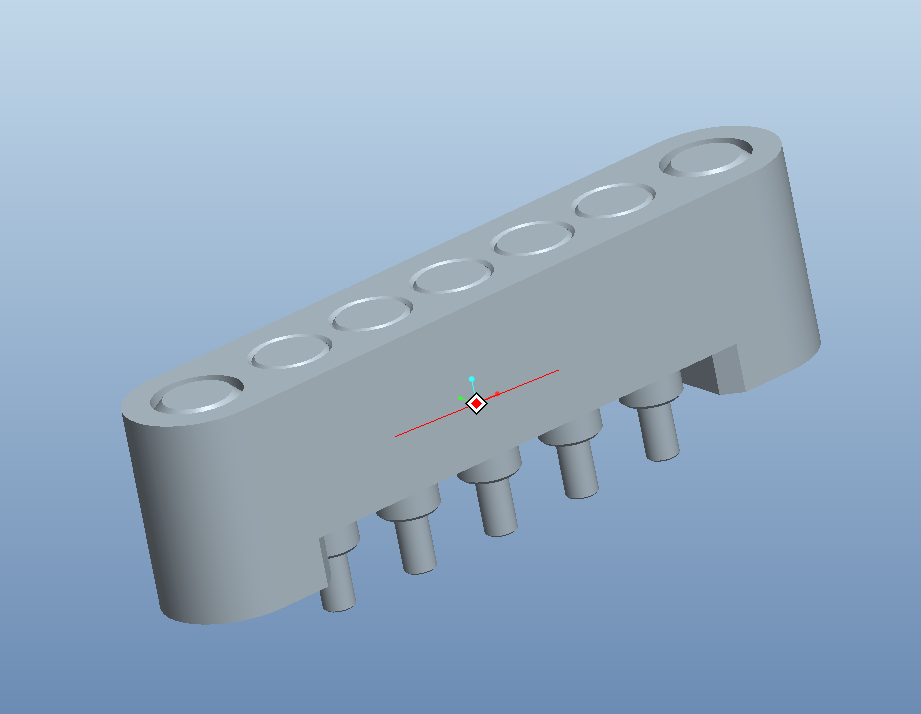

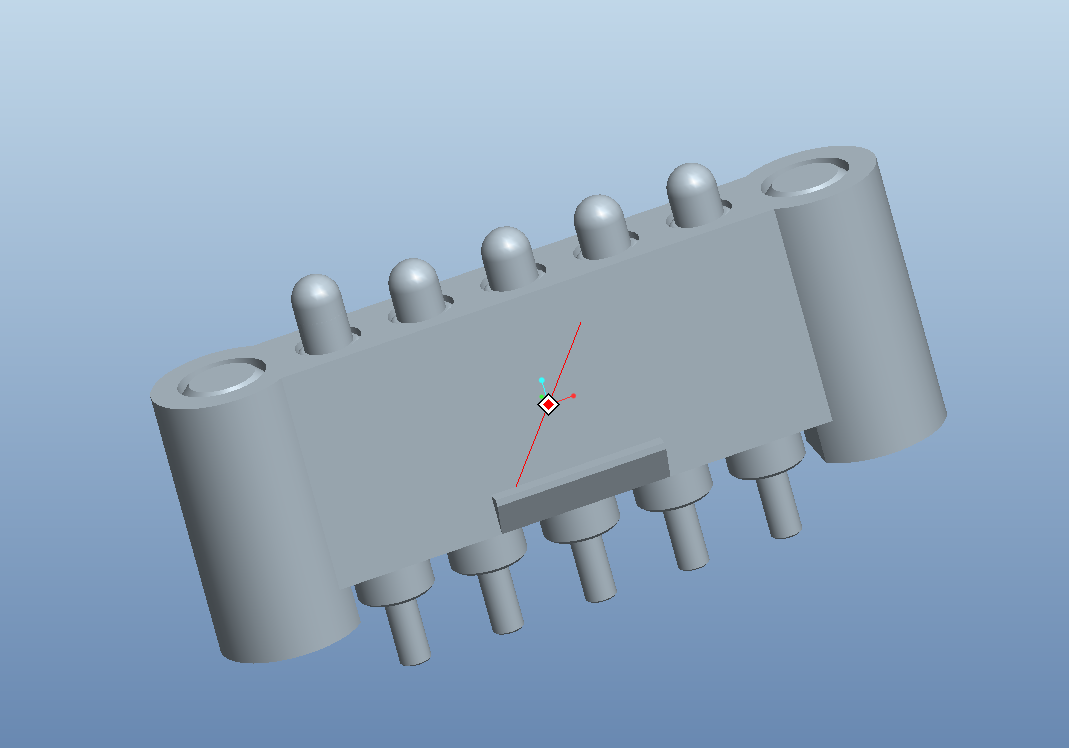

Common magnetic snap connectors feature magnetic elements in various shapes, including circular, track-like, and custom irregular shapes. The circular versions come in diameters ranging from 4 to 10 mm. Standard track-like designs use a 2.54-12 mm pin pitch. The lifespan can be customized to 100,000 to 200,000 uses.

The product industries that utilize Pogopin magnetic snap connectors are as follows:
Consumer Electronics: Smartphones, TWS (True Wireless Stereo) headphones, smartwatches, and AR/VR devices for charging or accessory expansion.
Healthcare and Industry: Monitors, physiotherapy devices, robots, and power tools that meet the demands for high-current transmission and reliability.
Automotive and Home Appliances: Vehicle navigation systems, intelligent cockpit systems, smart home controller devices, and LED lighting equipment.
